VIVLEX Guitar Pedals Super Effects Pedal Tuner Overdrive Delay Reverb Distortion Fuzz Noise Gate Flanger Metal Zone Blues Boost
Heavy Metal
3 Working Modes: Lo Boost/Boost Off/Hi Boost
Lo Boost: Boost a narrow band of high frequencies a little bit.
Boost Off: No boost is engaged.
Hi Boost: A higher amount of boost is engaged
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M ohms)
Output: 1/4” monaural jack (impedance: 470 Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 20 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Flanger
Classical Vintage analog flanger pedal, With static filtering mode, Give you an ultimate vintage flanger sound
two working modes: Normal/Filter
You just need to control the three knobs and then choose the model you want to give yourself a musical tone. Enjoy your own fun and colorful life.
Metal shell
Very small and exquisite
True bypass
Specifications:
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 510k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 10 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Delay
Analog circuit Delay pedal, has a warm, clean and smooth voice tone delay
Delay Time: 25ms – 600 ms
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 470k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 5 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Guitar Equalizer
Smallest guitar graphic equalizer pedal in the world
5-Band Graphic EQ with master level control
Frequency Centers: 100Hz, 250Hz, 630Hz, 1.6kHz, 4kHz
±18dB adjustable gain range per band
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 7mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Acoustic Guitar
1.Acoustic guitar analog effects, which can convert the electric guitar’s native tone into a realistic box organ sound color.
2. Advanced acoustic guitar analog processing technology.
3. Three different cabinet modes: Piezo/Standard/Jumbo.
Metal shell
Very small and exquisite
True bypass
Specifications
Working Mode: 3 (Piezo/Standard/Jumbo)
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 17 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Plexion
Classic Plexion distortion to shape the suitable distortion sound.
Three knobs to control the gain, tone, and volume functions, as well as a toggle switch to switch between Bright and Normal sounds.
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 10k Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V (Negative center)
Current draw: 3mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
ABY Liner
A single Block with fully functional lines-selection , which can switch one input signal to the two different output, suitable for the line selection mode of musical instruments、 amplifier、Sound box (need horn line), and the combination effect pedal.
The selection-switch design can change the A/B separate transmission to be A&B simultaneous transmission.
In both modes, ABY can be used in both directions, and the signal can be transmitted from interface A and B to interface Y, and from interface Y to interface A and B.
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 6mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Guitar Tuner
Chromatic which is suitable for wide range tuning.
Tuning range is A0(12Hz) ~ C8(4186Hz).
LED Light indicator shows the working state, and display leads clear results of tuning.
It’s easy to read the right tone.
New fast precise strobe mode with +/- 0.1% accuracy.
Easy to Use
Connected with power and audio cable, Deluxe Tuner will go to bypass mode. Press bypass switch to enter tuning mode.
Operation shows black when there is no input signal
The blue indicator in the middle turns on when the tone is accurate.
Metal shell
Very small and exquisite
True bypass
Specifications：
Input:1/4″ monaural jack (Impedance:10K Ohms)
Output:1/4″ monaural jack(Impedance:1K Ohms)
Power requirements: DC 9V(Negative center)
Working current: 3mA
Tremolo
Classic optical tremolo with huge range of speeds and depths
BIAS knob brings various color of the tremolo sound
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 5mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Distortion III
2 Working Modes:Vintage/Turbo
Vintage: A warm, smooth, vintage distortion sound
Turbo: More than twice the maximum output of the vintage mode, more powerful distortion sound
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 3 mA
Dimensions: 95mm (D) × 45mm (W) × 53mm (H)
Distortion IV
3 Working Modes: Original/Extra/Ultra
Original: Provide a strong and hard edge distortion sound with low noise level.
Extra: Provide a high gain, and more tube-like distortion.
Ultra: Provide a fatter drive tone, and a wider distortion range.
Metal shell
Very small and exquisite
True bypass
Specifications
Effect Mode: 3 (Original/Extra/Ultra)
Input: 1/4” monaural jack (impedance: 470k ohms )
Output: 1/4” monaural jack (impedance: 10k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 6 mA
Dimensions: 95mm (D) × 45mm (W) × 53mm (H)
Distortion I
A high gain distortion sound with powerful mid frequency
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 7 mA
Dimensions: 95mm (D) × 45mm (W) × 53mm (H)
Overdrive II
Two working modes: Warm/Hot
Warm: reproduce the classical electronic overdrive with plump, warm and sweet effect
Hot: a more powerful “Crunch’’ Sound
Metal shell
Very small and exquisite
True bypass
LED indicator shows the working state.
Specifications:
Input: 1/4” monaural jack (impedance: 500k Ohms)
Output: 1/4” monaural jack (impedance: 10k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 7 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Phaser
Full analog circuit, warm, deep, rich phasing tone
2 Working Modes: Vintage/Modern
Vintage: 1974 vintage phasing tone, warm and psychedelic
Modern: Modern feeling phaser, rich and deep
Metal shell
Very small and exquisite
True bypass
Specifications
Working modes: 2(Vintage/Modern)
Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 10k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 5 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Fuzz
Legendary Fuzz tone, dynamic, full and sweet sounding
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 3 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Booster
20db+ clean boost with ±15db 2 band EQ, nice embellishing of original tone
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms)
Output: 1/4” monaural jack (impedance: 10k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 6 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Noise Gate
2 Working Modes: Hard/Soft
Hard: Removes more noise signals and effectively cuts out noise generated by high gain effects.
Soft: For moderate gain overdrive to make the tone cleaner and more natural, effectively reducing noise from single coils or other devices.
Effects Modes: 2 (Hard/Soft)
Hard: Provide hard effect of noise reduction.
Soft: Provide soft effect of noise reduction
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M Ohms )
Output: 1/4” monaural jack (impedance: 100k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 26 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Bluesy
Wide range frequency response blues style overdrive sound, also sounds good on bass
2 Working Modes: Bright/Fat
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 1M )
Output: 1/4” monaural jack (impedance: 1k Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 14 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).

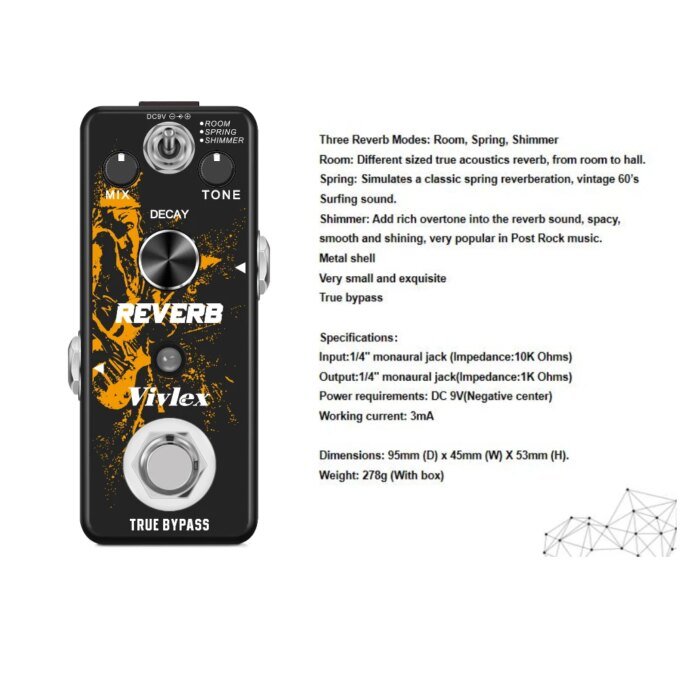

Reverb
Three Reverb Modes: Room, Spring, Shimmer
Room: Different sized true acoustics reverb, from room to hall.
Spring: Simulates a classic spring reverberation, vintage 60’s Surfing sound.
Shimmer: Add rich overtone into the reverb sound, spacy, smooth and shining, very popular in Post Rock music.
Metal shell
Very small and exquisite
True bypass
Specifications：
Input:1/4″ monaural jack (Impedance:10K Ohms)
Output:1/4″ monaural jack(Impedance:1K Ohms)
Power requirements: DC 9V(Negative center)
Working current: 3mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Wah
Digital automatic wah sound effect pedal, which can strengthen your voice and strengthen your music personality, is the most simple rhythm and the tonic counterpoint.
The Wah pedal can produce strong rhythm of ‘wah~wah’ sound.
There are wah effects in 3 different frequency, so you can feel the subtle differences in a rich emotional phrase
Strong adjustability automatic wah sound effect
Three peak working modes
Metal shell
Very small and exquisite
True bypass
Specifications：
Input:1/4″ monaural jack (Impedance:10K Ohms)
Output:1/4″ monaural jack(Impedance:1K Ohms)
Power requirements: DC 9V(Negative center)
Working current: 3mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Chorus
Pure analog high Warm and clear Chorus sound with nice Spacey feeling
Metal shell
Very small and exquisite
True bypass
Specifications
Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 470 Ohms)
Power requirements: DC 9V(Negative center)
Current draw: 9 mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Slow Gear
A unique effect which almost seems to slow the sound down.
The Slow Hand cuts off the attack of each note and produces an effect like rolling up the volume knob on the guitar or that of a bowed instrument.
The Slow hand swells like a slow gear，when used with delay, it can create some interesting backwards sounding passages.
Metal shell
Very small and exquisite
True bypass
Specifications：
Input:1/4″ monaural jack (Impedance:470K Ohms)
Output:1/4″ monaural jack(Impedance:1K Ohms)
Power requirements: DC 9V(Negative center)
Working current: 3mA
Dimensions: 95mm (D) x 45mm (W) X 53mm (H).
Noise Killer
Noise Killer is a noise reduction effect, mainly used to remove noise.Whether it’s noise in the use of gain, noise in the connection of equipment such as cables, or in the suppression of steady-state or dynamic noise, Noise Killer is unmatched in the pedal world! It adopts a sophisticated design to perfectly attenuate the noise generated in the use of various equipment and preserve the original and natural sound to the greatest extent. Open the front panel and you’d be forgiven for thinking the noise killer is one of the easiest pedals available. In fact, it is very flexible when it comes to remove unwanted noise. It comes with a threshold knob that allows you to adjust parameters,preserving the most authentic sound as you like.
Dimensions: 112mm (D) x 60mm (W) X 45mm (H).
Looper Pro
Supporting up to 40 seconds, unlimited overlapping loop recording time
Containing reverb, chorus, delay , Tuner and Looper 5 kinds of effects on it!
The looper pro has 4 effect knobs, 1 Footswitch, 2 indicator light, 1 power LED, All of them are accurate and high sensitive.
FOOT SWITCH: Control ON/OFF upon True Bypass.
POWER LED: when the LED is on, it shows the pedal is in working status.
LEVEL rotary knob: Volume Adjustment Knob
DELAY rotary knob: Delay effect, adjust the time length of delay effect
CHORUS rotary knob: Chorus effect, adjust the depth of the chorus effect
REVERB rotary knob: Reverb effect, adjust the ratio of dry and wet reverb effect device
Dimensions: 112mm (D) x 60mm (W) X 45mm (H).
Pedal Power
Adapter specification:
Input: AC 100-240 50/60 Hz
Output: DC 18V 1A
Product size: 17.2 x 4.5 x 3.3 cm
Packing Weight: 530g
Package includes:
1 x Power supply
1 x Power adapter
1 x User manual
8 x 55cm connector
2 x 20cm polarity conversion line
There are no reviews yet.
