Koogo Guitar Effects Pedal Power Supply 10 Isolated DC Source Output 1USB 5V Port Effector Power Supply 9V 12V 18V PedalBoard

Koogo Guitar Effects Pedal Power Supply 10 Isolated DC Source Output 1USB 5V Port  Effector Power Supply  9V 12V 18V For PedalBoard Pedals

Description:

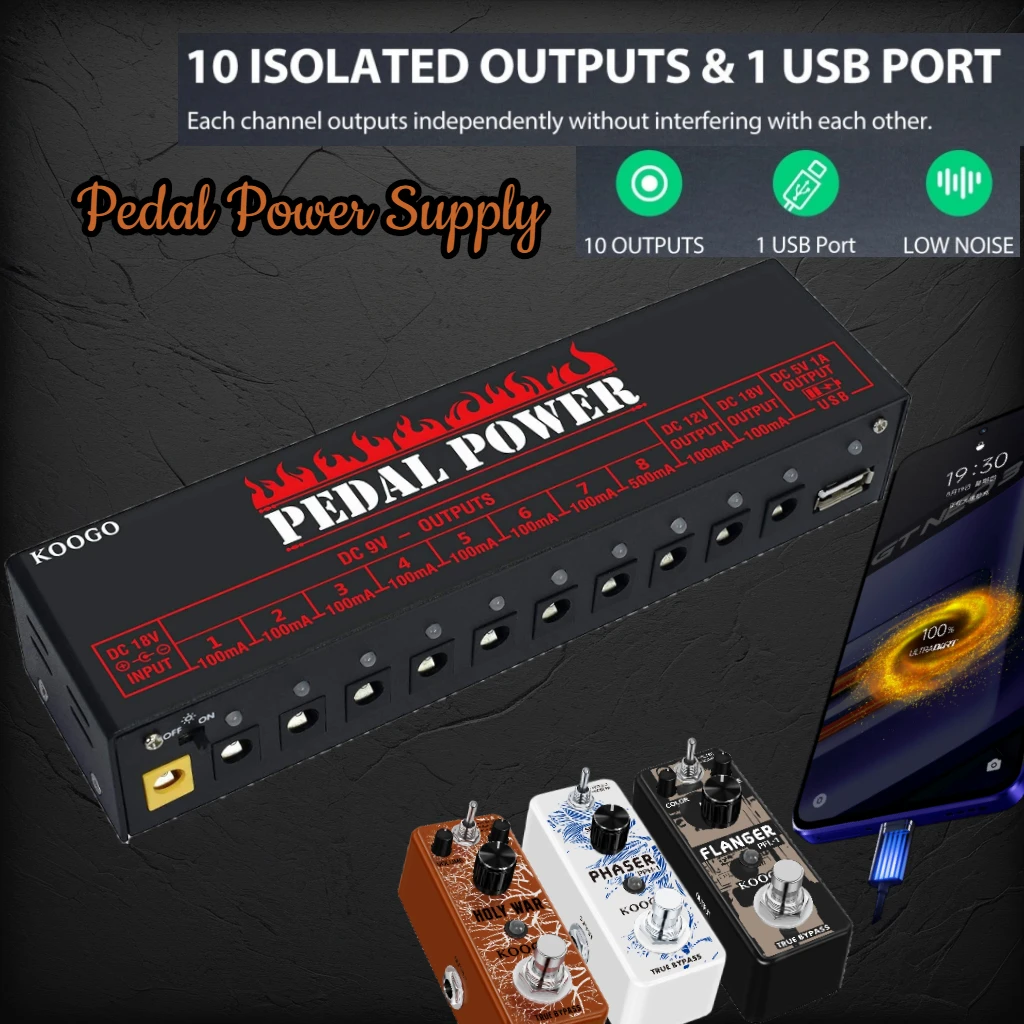

【10 Isolated Outputs】 The guitar power supply includes 7 x 9V 100mA, 1 x 9V 500mA, 1 x 12V 100mA, 1 x 18V 100mA,

1 x 5V 1A USB, DC 18V input.It can meet the power supply requirements of various guitar effects.The power supply comes

with an independent USB port,charging for iPhine, iPad, Android, Tablet.

【Full Metal Shell】High quality aluminum alloy.

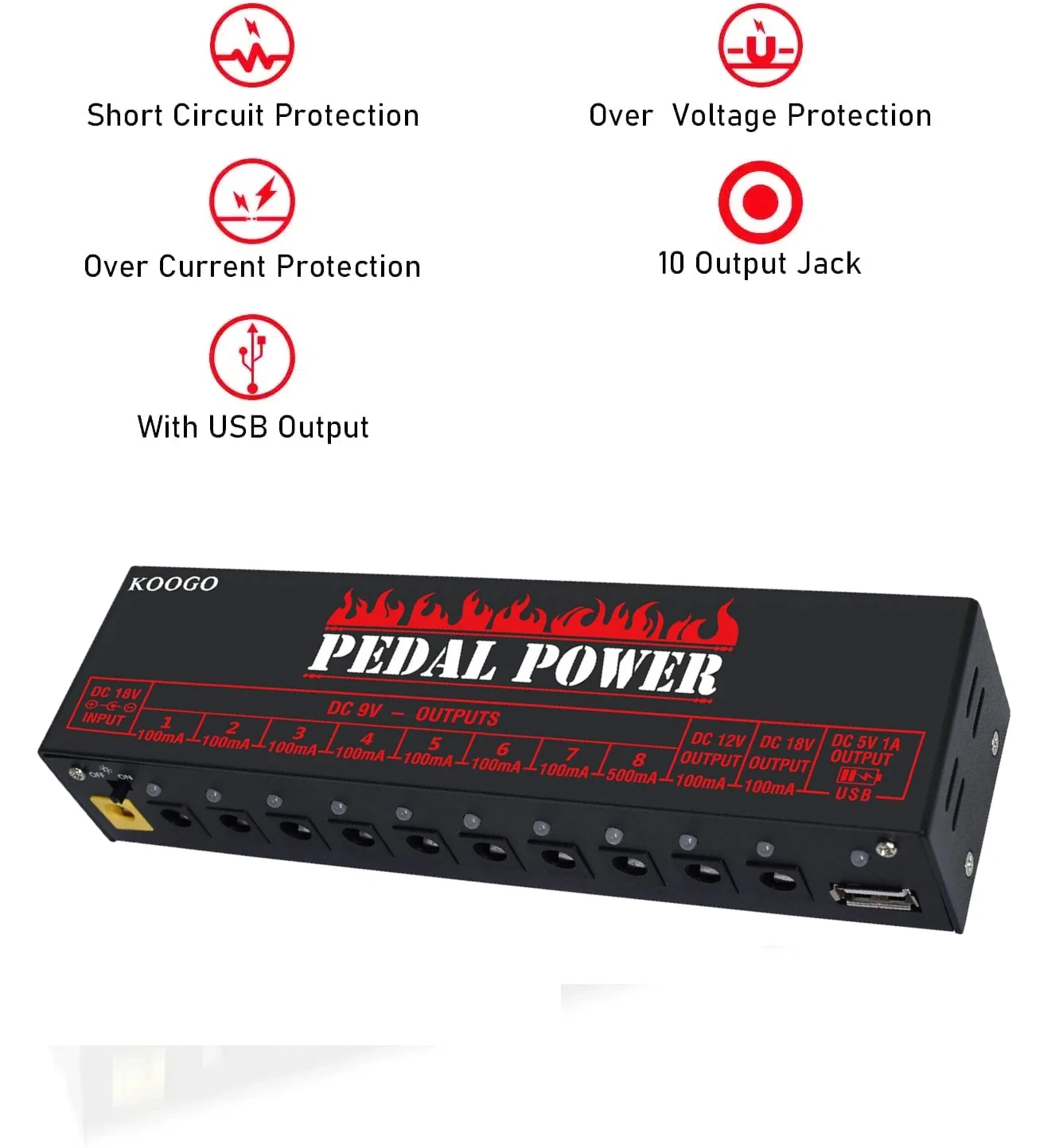

【Separate Short Circuit Protection】 Each circuit has independent short-circuit protection and independent short-circuit

protection indicator, which ensures that even if one of the lines is short-circuited, the other branches can operate normally.

【Noise Filter】With noise reduction function,the power supply has low noise effect.

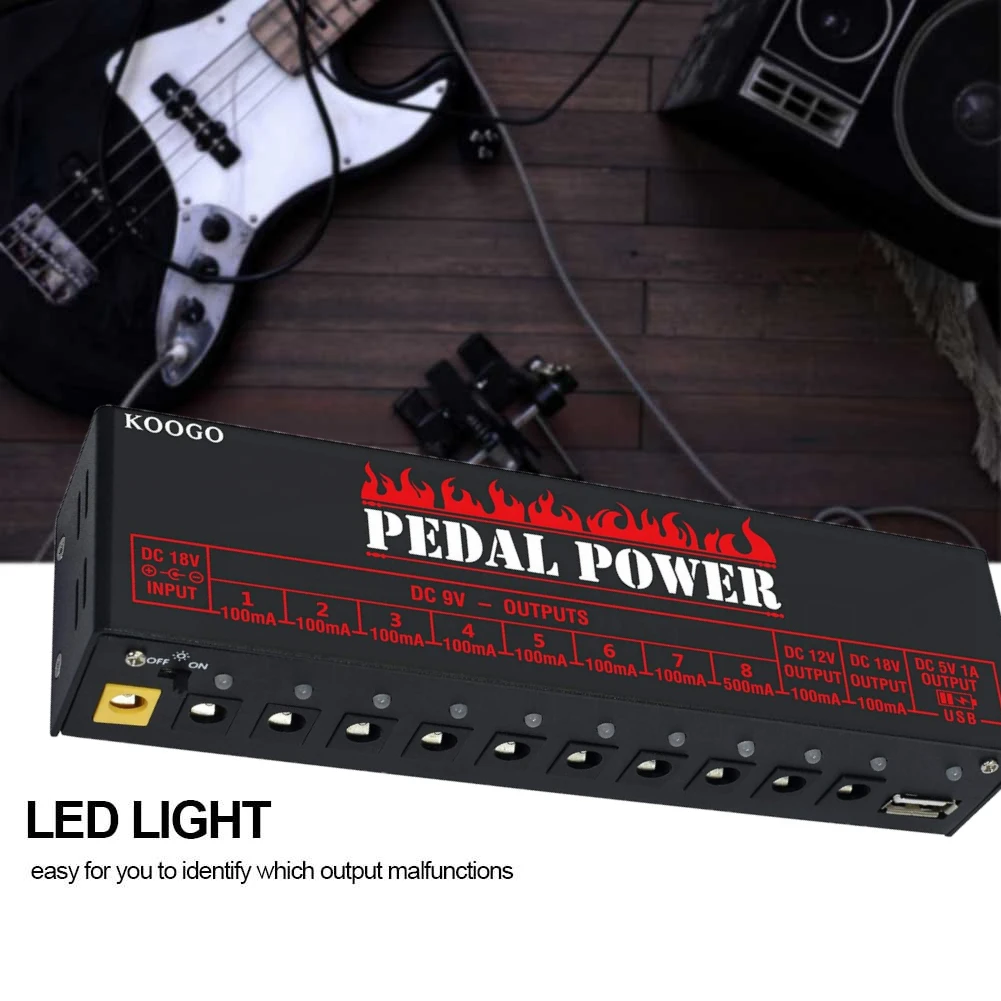

【LED POWER INDICATOR】The Blue LED lights will indicate the short short-circuit or overload problem.

Product description:

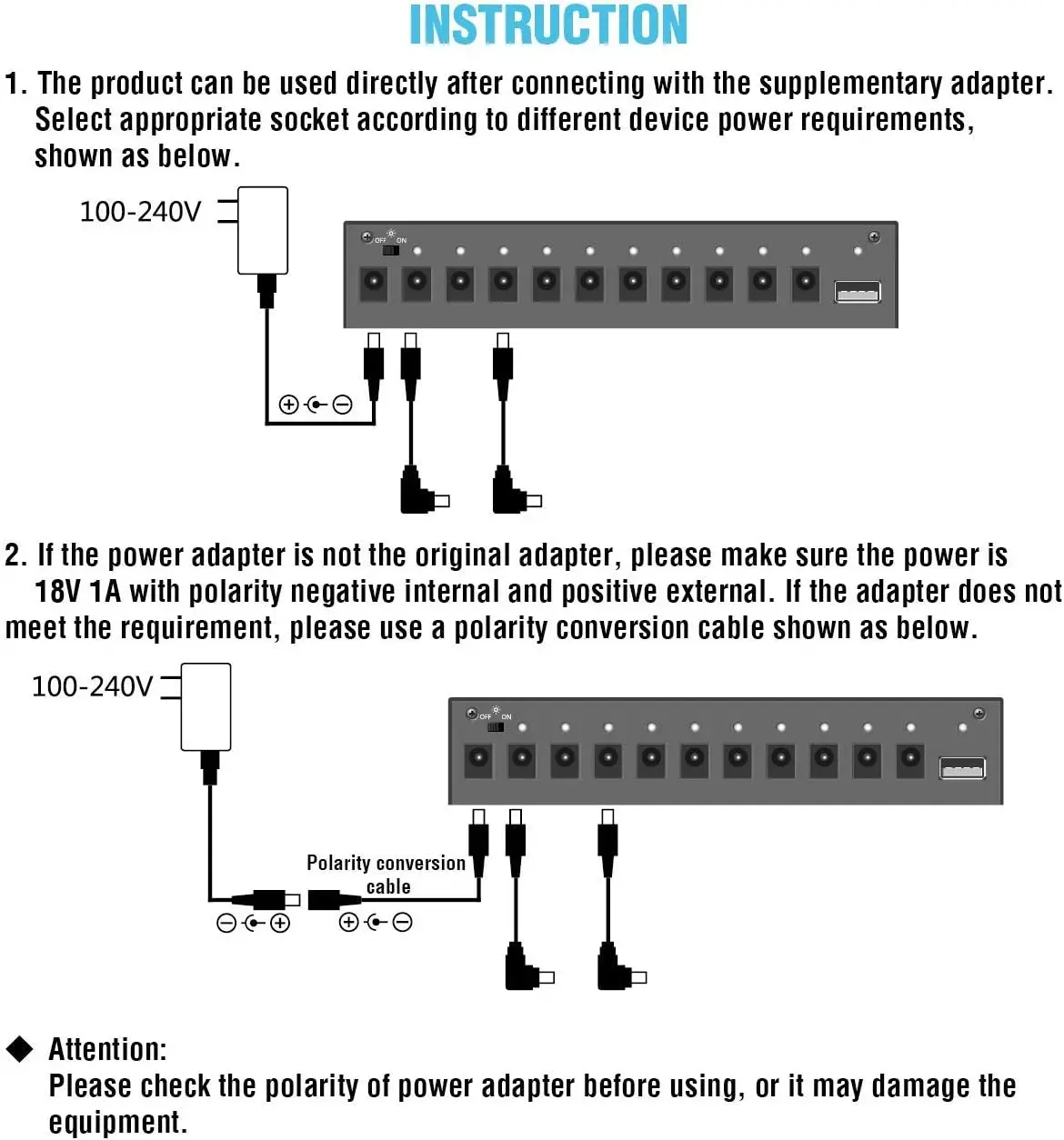

The Pedal power can be used directly after connecting with the supplementary adapter. Select appropriate socket according to

different device power requirements, shown as right picture:

If the power adapter is not the original adapter, please make sure the power is 18V 1A with polarity negative internal and

positive external. If the adapter does not meet the requirement, please use a polarity conversion cable shown as right second picture:

• Power: AC 100v – 240v 50/60Hz

• Power for: 9V,12V,18V, 5V 1A USB

• Input: DC 18V

• Output: 7 way 9V 100mA

• Material: Aluminum alloy

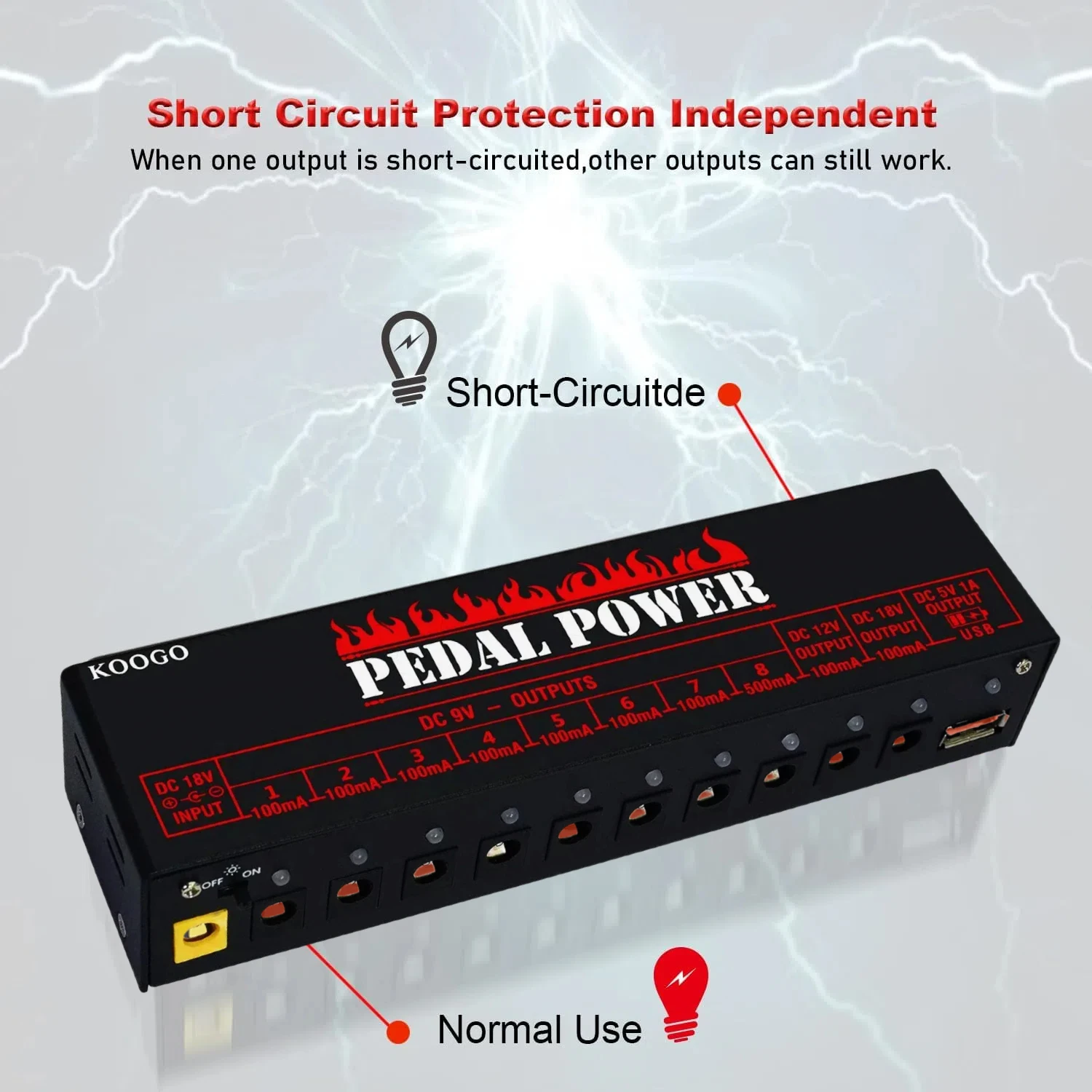

Short Circuit Protection:

In case a socket has a short circuit equipment plugged in or gets current overload, it will stop providing power.

Once the equipment is disconnected from DC5521, the power of the socket will resume.

Please ensure the power input is DC 18V 1A. Plug standard with negative internal and positive external.

Promise:12 months unconditionally solution

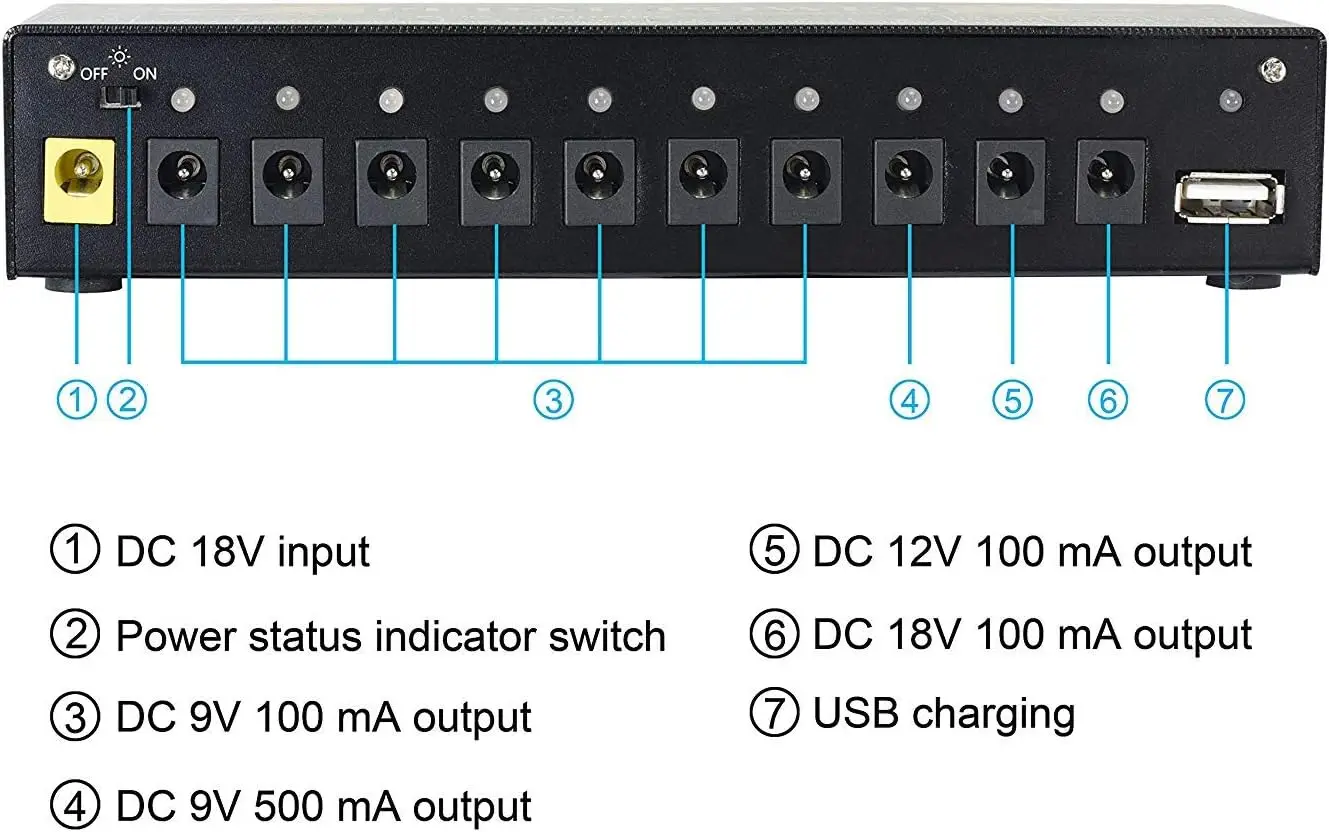

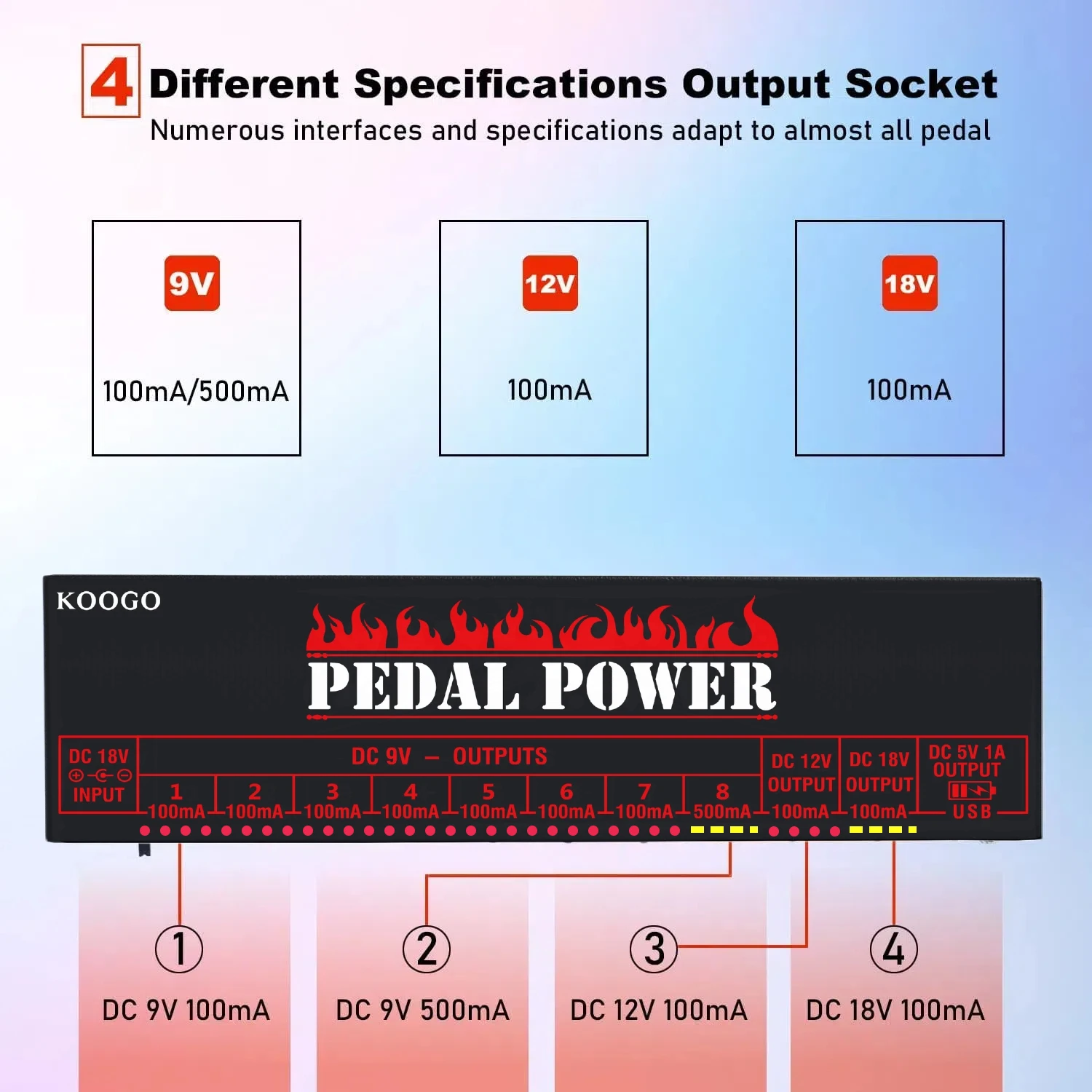

Specifications for Output:

7 way 9V 100mA

1 way 9V 500mA

1 way 12V 100mA

1 way 18V 100mA

1 way 5V 1A USB

Power status indicator lights:

When the indicator switch is on, indicator lights will be on to show available power supply sockets.

Attention: Please check the polarity of power adapter before using, or it may damage the equipment.

Package Spec:

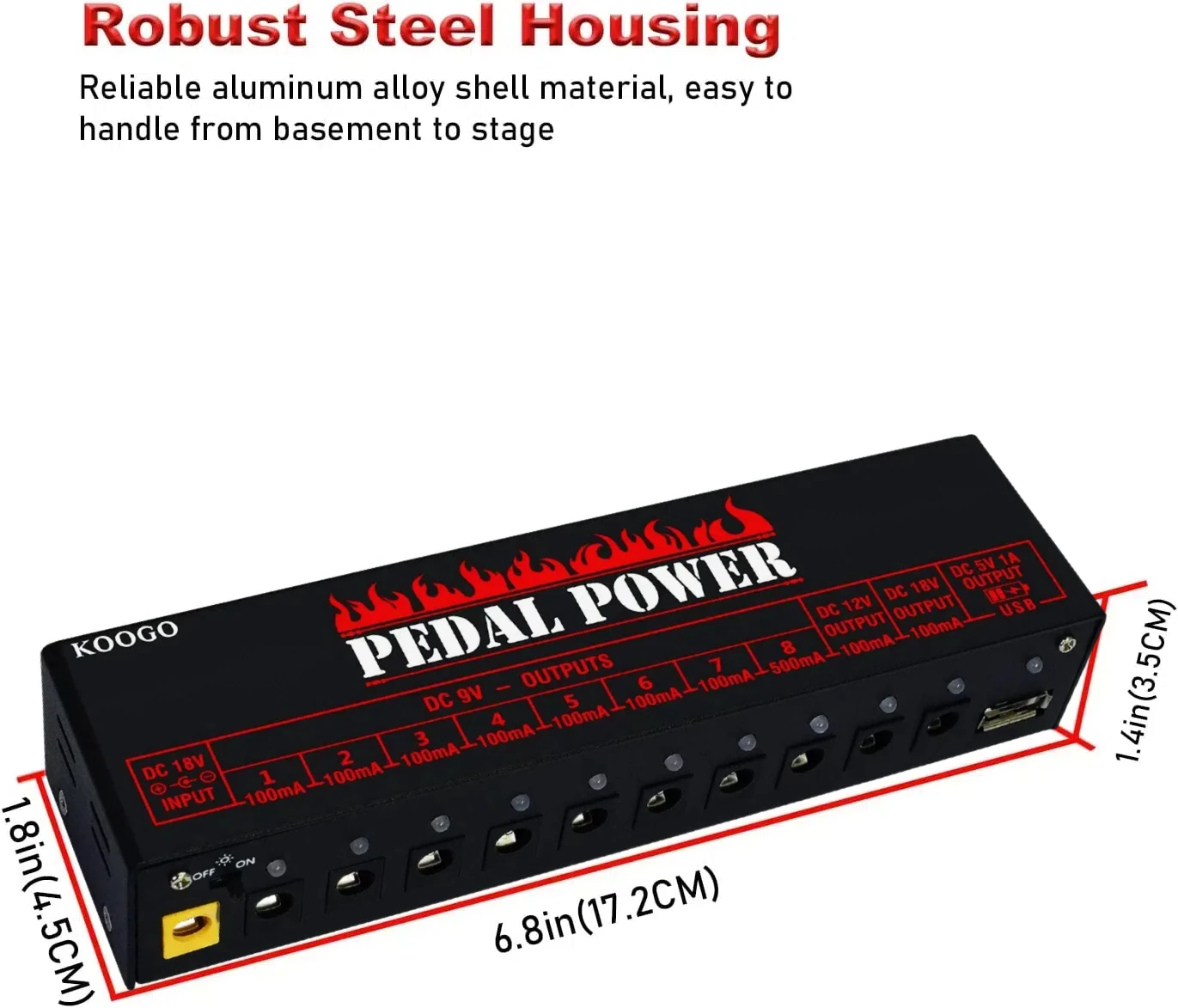

Product size: 17.2 x 4.5 x 3.3cm

Package size: 23.8 x 5.8 x 10cm

Package weight: 620g

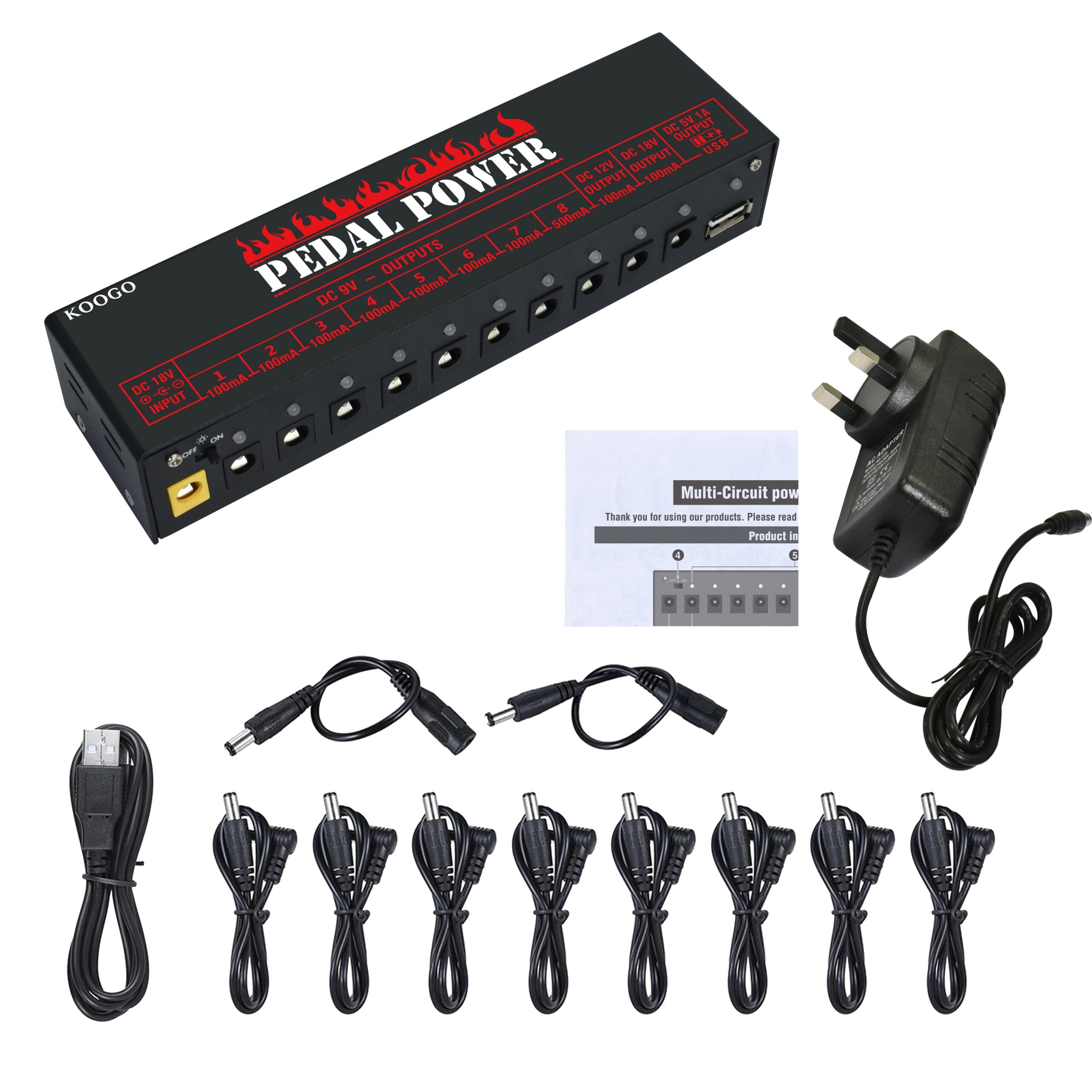

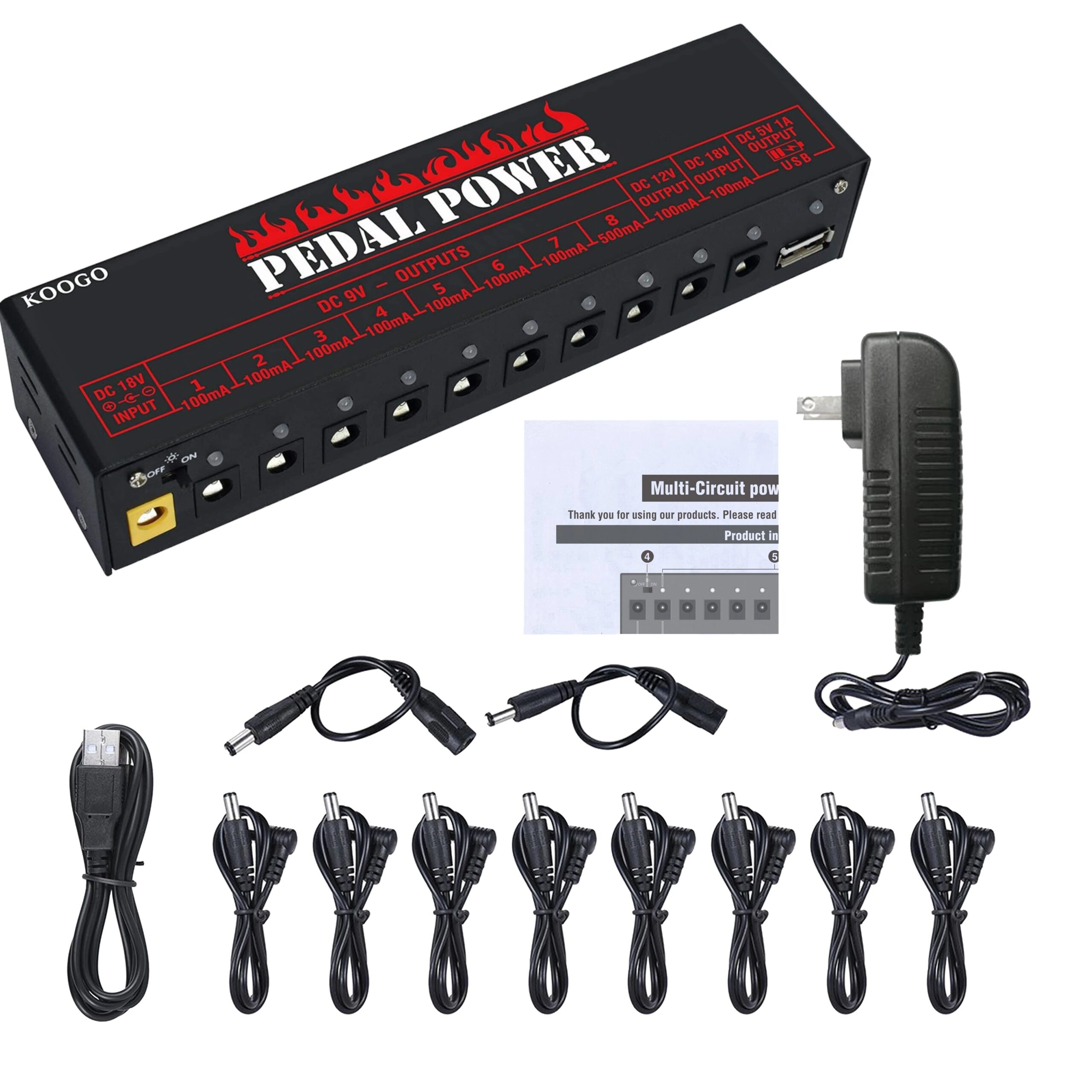

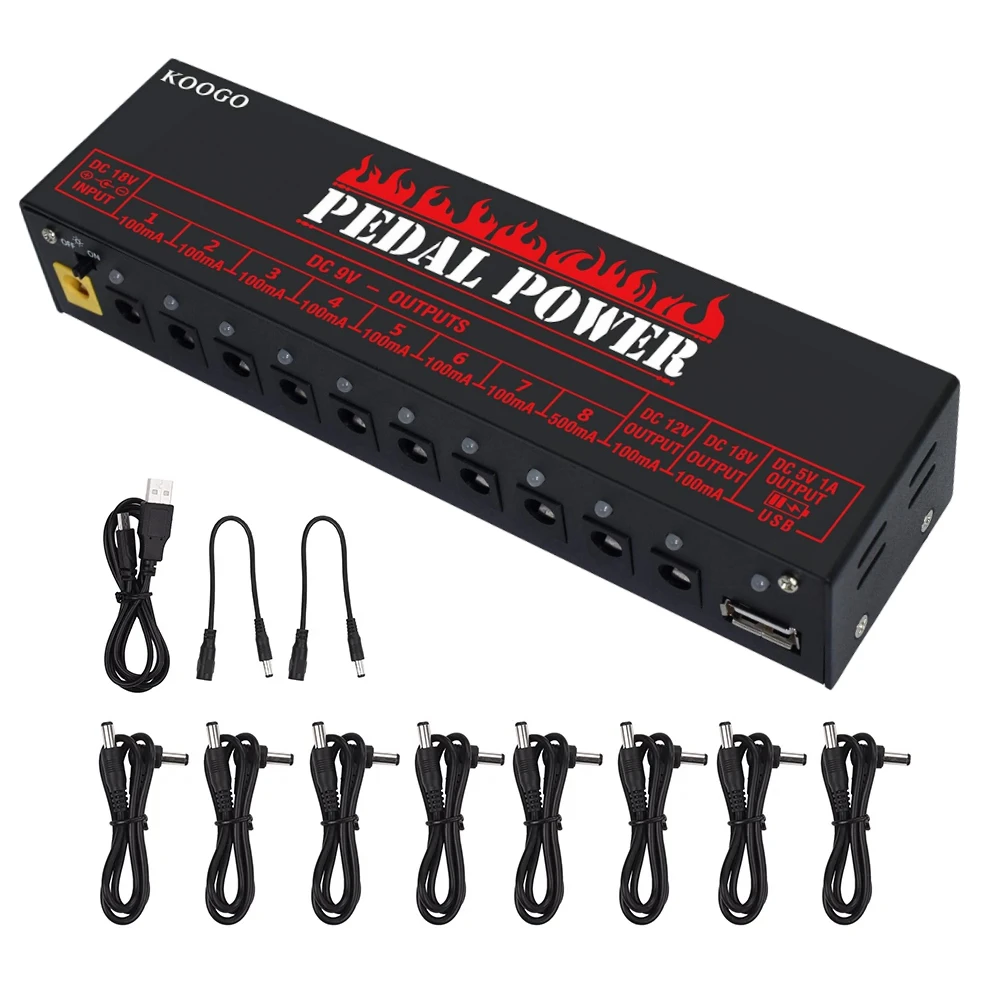

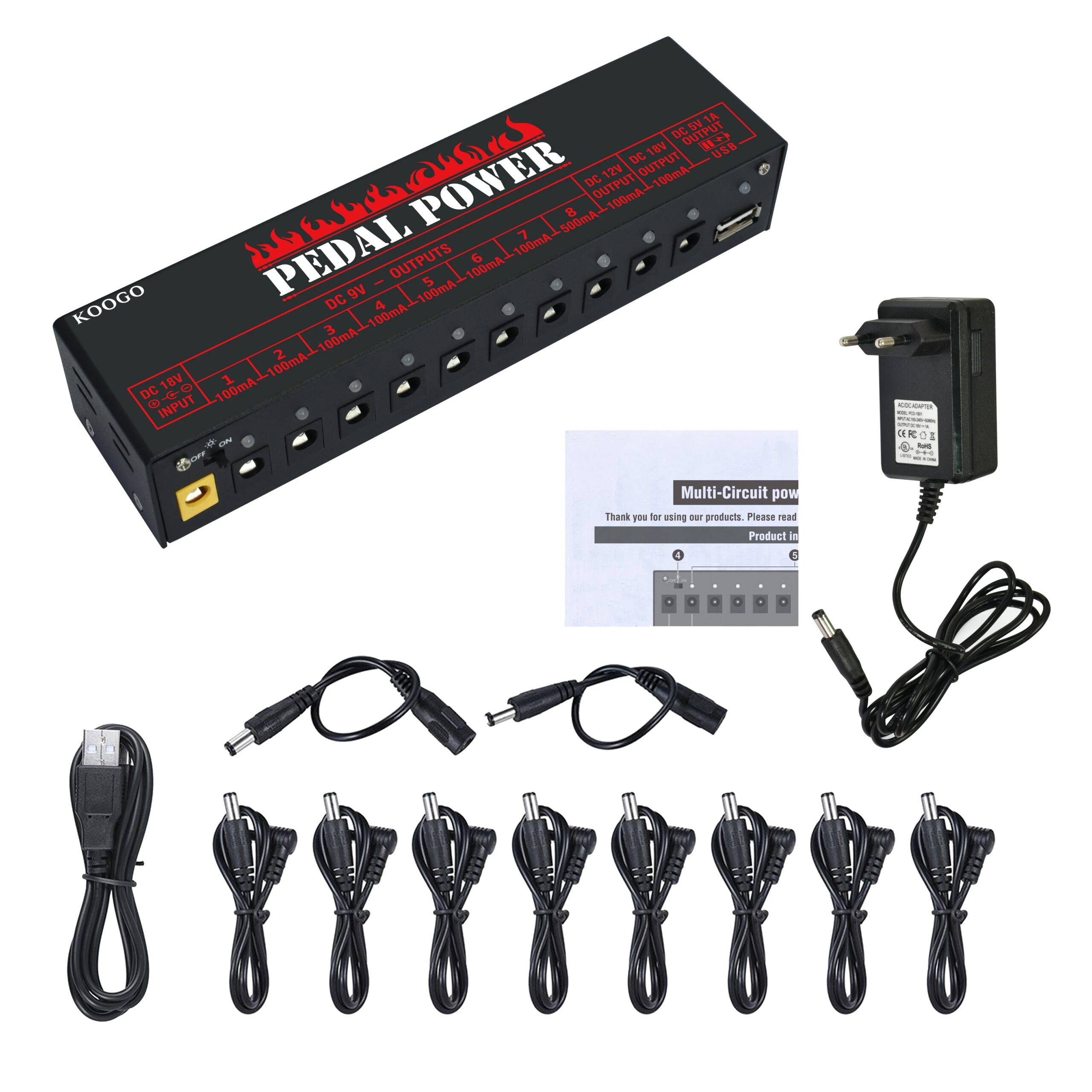

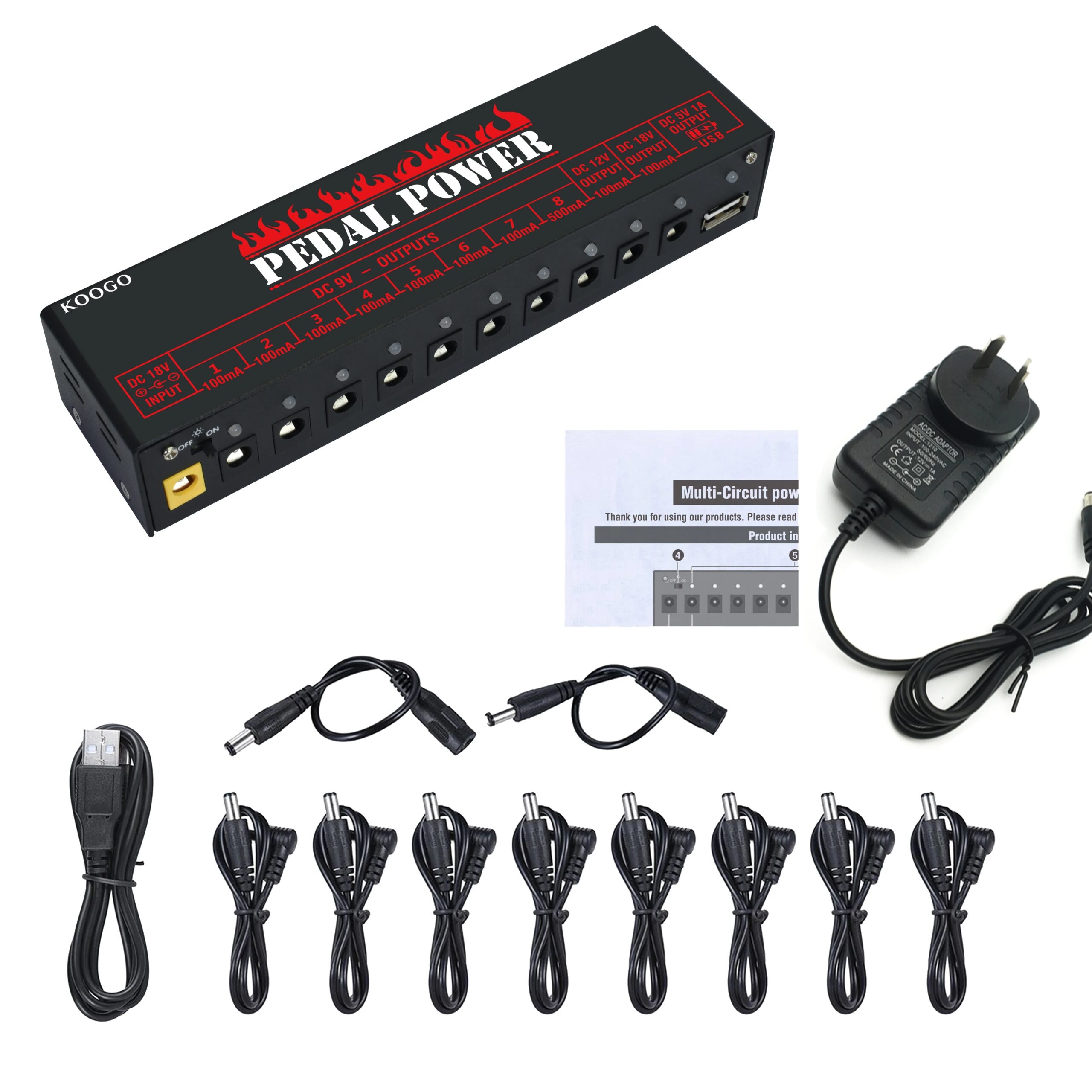

Package Included:

1 x PW-01 Power Supply

1 x Power Adapter

8 x 55cm cables

2 x Polarity Reversal Cable

1 x USB cable

1 x User Manual; 1 x Polishing Cloth; 2 x Guitar Picks
